Advancing Orthopedic Implant Manufacturing

In the orthopedic and medical device industry, surface finishing is not a secondary process; it is a mission-critical step that directly impacts patient safety, implant longevity, and regulatory compliance. From hip and knee replacements to spinal and cranial implants, every component must meet exceptionally tight tolerances and surface quality requirements. Even microscopic imperfections can influence wear behavior, osseointegration, and overall clinical outcomes.

As implant designs become more complex and production volumes increase, manufacturers are turning to advanced, automated finishing technologies. Rösler Metal Finishing and AM Solutions, a brand of the Rösler Group, is at the forefront of this transformation—delivering highly engineered solutions that enable consistent, reproducible, and cost-efficient finishing processes for both traditionally manufactured and additively produced implants.

The Critical Role of Surface Finishing

Orthopedic implants operate in one of the most demanding environments imaginable: the human body. Components must withstand continuous mechanical stress while interacting seamlessly with biological systems. This creates a unique set of surface requirements.

Implants must exhibit ultra-smooth, polished surfaces in articulating zones to minimize friction and wear and controlled roughness in bone-contact areas to promote osseointegration. Complete removal of burrs and sharp edges to prevent tissue damage and absolute cleanliness to reduce infection risk are required. Finally, tight dimensional accuracy to ensure proper fit and function is critical.

Surface finishing processes must therefore deliver not only precision but also repeatability, traceability, and compliance with stringent medical standards.

Historically, many of these processes relied heavily on manual polishing and finishing. However, manual methods introduce variability, increase labor costs, and limit scalability. This is where Rösler’s automated technologies have fundamentally reshaped the industry.

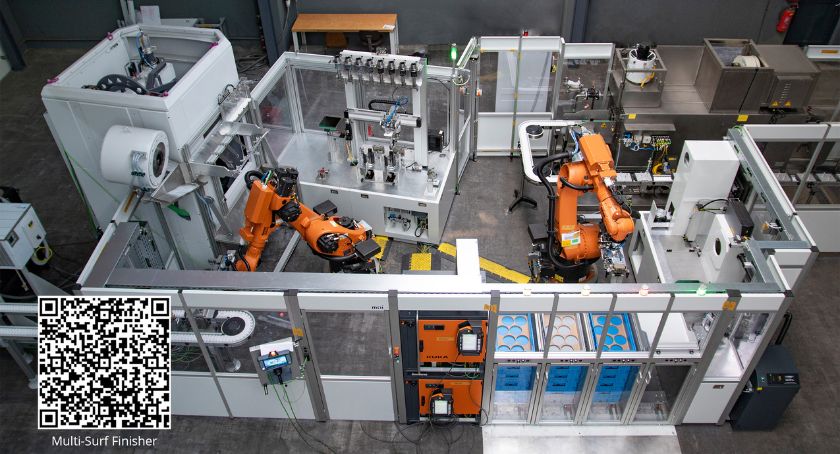

Multi-Surf Finishing: Precision, Speed, and Automation

Rösler’s multi-surf finisher technology represents one of the most advanced developments in mass finishing for high-value medical components. Designed specifically for complex geometries and targeted surface treatment, multi-surf finishers enable precise, repeatable finishing of orthopedic implants.

In a multi-surf finisher, implants are mounted on spindles and immersed in a rotating processing bowl filled with specialized grinding or polishing media. The combination of rotational and tilting movements allows for highly controlled material removal on defined surface areas—critical for implants that require different finishes on different zones.

This technology offers several key advantages:

• Targeted Surface Finishing: Unlike conventional methods, multi-surf finishers can selectively process specific areas of an implant. This is particularly valuable for femur parts where articulating surfaces must be mirror-smooth, while other areas require different textures.
• Automation of Complex Geometries: Previously inaccessible features—such as the “box” area in femur implants—can now be fully processed automatically, eliminating manual intervention and improving consistency.
• Reduced Cycle Times: Compared to traditional drag finishing processes, multi-surf finishing technology can achieve equivalent or superior results much faster, significantly increasing throughput.
• Superior Surface Quality: Mirror-smooth surfaces with roughness values up to Ra 0.01 µm can be achieved, meeting the stringent requirements for articulating implant surfaces.
• Integrated Process Control and Traceability: Digital monitoring systems track process parameters such as speed, cycle time, and media condition, ensuring reproducibility and supporting validation documentation—an essential requirement in medical manufacturing.

For implant manufacturers, these capabilities translate directly into improved productivity, reduced costs, and higher-quality products.

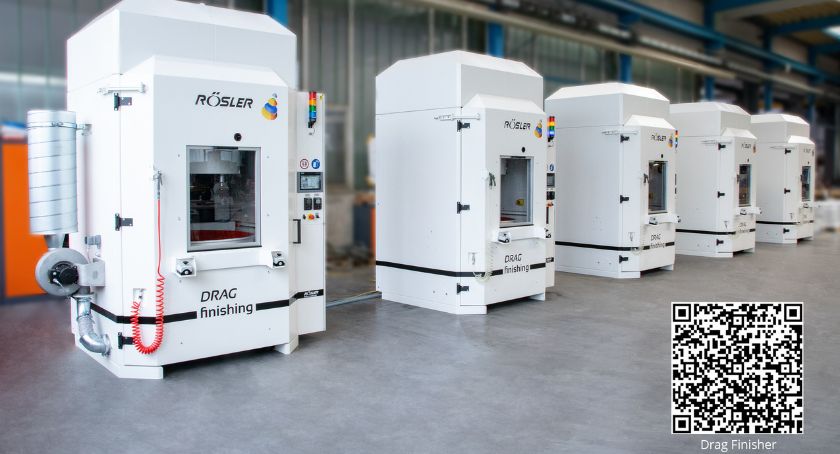

Drag Finishing: The Industry Standard for High-Gloss Implant Surfaces

While surf finishing technology pushes the boundaries of automation and speed, drag finishing remains a cornerstone of medical surface finishing—and for good reason.

In drag finishing, components are mounted on rotating fixtures and “dragged” through a stationary bed of abrasive or polishing media. The relative motion between the workpiece and media produces controlled material removal, enabling extremely fine surface finishes.

Drag finishing systems are particularly valued for:

• Exceptional Surface Quality: They consistently produce mirror-like finishes required for articulating implant surfaces, ensuring low friction and reduced wear.
• High Process Control: The fixed positioning of the workpiece allows for precise control of processing parameters, resulting in uniform and repeatable outcomes.
• Versatility Across Materials: Drag finishing is effective on a wide range of implant materials, including titanium and cobalt-chrome.
• Proven Reliability in Medical Applications: Drag finishing is ideal for delicate or complex components that require gentle yet precise treatment. It ensures that even sensitive geometries can be processed without damage while maintaining dimensional integrity. Therefore, leading implant manufacturers rely on drag finishing to meet the strict quality standards required in the industry.

AM Solutions: Enabling Additive Manufacturing in Medical Devices

Additive manufacturing (AM) is revolutionizing the orthopedic industry by enabling patient-specific implants, complex lattice structures, and rapid prototyping. However, AM introduces a new set of challenges—particularly in surface finishing.

3D-printed implants often exhibit extremely high initial surface roughness, sometimes exceeding Ra 50 µm, compared to much smoother surfaces from traditional manufacturing methods. These rough surfaces must be refined to meet functional and regulatory requirements.

Addressing AM Post-Processing Challenges

AM Solutions provides automated systems specifically designed for the post-processing of additively manufactured components. These solutions address key challenges such as removal of residual powder and support structures, reduction of surface roughness, achievement of functional and aesthetic surface finishes, and preparation for downstream processes such as coating or sterilization.

By integrating AM Solutions’ post-processing equipment into their production lines, manufacturers can fully leverage the design freedom of additive manufacturing without compromising on quality or compliance. This applies to medical technology just as much as it does to numerous other industries.

Process Integration: A Holistic Approach to Implant Manufacturing

One of the key advantages of working with Rösler is the ability to integrate multiple finishing technologies into a cohesive production strategy. Orthopedic implant manufacturing often involves several stages, including casting, machining, surface finishing, and coating.

Rösler systems are designed to complement these stages, enabling manufacturers to optimize the entire production chain. For example, multiple finishing steps can be consolidated into fewer machines and automated handling systems can be integrated for continuous production. This holistic approach not only reduces costs but also improves overall process efficiency and consistency.

Additionally, in Rösler’s global customer experience centers, we develop the processes that are best suited for our customers’ special challenges. This ensures the selected finishing solution is precisely tailored to the application before full-scale implementation.

Real-World Success in Orthopedic Manufacturing

Leading implant manufacturers worldwide rely on Rösler equipment to meet their production and quality goals. For example, the implementation of multi-surf finishers has enabled manufacturers to significantly reduce cycle times while achieving superior surface finishes on knee implants.

Similarly, drag finishing systems are widely used in production environments to deliver consistent, high gloss finishes on femur and tibia components. These systems provide the process stability required for large-scale manufacturing while maintaining the precision needed for medical applications.

In many cases, the adoption of Rösler technologies has resulted in increased throughput and reduced production times, lower labor costs through automation, improved product quality and consistency, and enhanced ability to meet regulatory requirements.

Meeting the Future of Medical Manufacturing

The orthopedic and medical device industries are evolving rapidly, driven by advancements in materials, manufacturing technologies, and patient-specific solutions. As implants become more complex and production demands increase, the need for advanced finishing technologies will only grow.

Rösler Metal Finishing and AM Solutions are uniquely positioned to support this evolution. Through continuous innovation, digital integration, and a deep understanding of medical manufacturing requirements, they provide solutions that not only meet current challenges but also anticipate future needs.

Conclusion

In the medical industry, there is no margin for error. Every implant must perform flawlessly, and surface finishing plays a critical role in ensuring that performance.

Rösler’s multi-surf finishers, drag finishers, and AM Solutions technologies are helping manufacturers move beyond traditional limitations—delivering automated, precise, and scalable finishing processes that meet the highest industry standards.

By combining engineering expertise, advanced technology, and a commitment to innovation, Rösler is not just supporting the medical industry—it is helping shape its future.
